CAPS cuts Kilcoy's costs

The Kilcoy Pastoral Company (Kilcoy) has drastically reduced energy expenditure in its facilities in Queensland by refurbishing existing plant and installing new compressor equipment supplied by Compressed Air and Power Solutions Australia (CAPS).

Kilcoy was formed in 1953 to supply local butchers and, since that time, has grown to be one of the largest integrated beef processors in Australia. Each year, more than 260,000 head of cattle pass through the company’s facility located 100 kilometres north-west of Brisbane.

Kilcoy sells meat to the domestic Australian market and also supplies its processed beef to 20 international markets, through its accreditation with AUS-MEAT as an approved exporter. The company is also a major employer in the region of South-East Queensland around the town which gave the company its name.

In 2011, a full energy audit of the Kilcoy plant was conducted by Energy Efficiency Services (EES), a business division of CAPS Australia. Compressed air is responsible for 10-15% of industrial electricity use nationwide. Analysis of the audit results indicated there were considerable savings to be made by ensuring the compressed air systems were energy efficient.

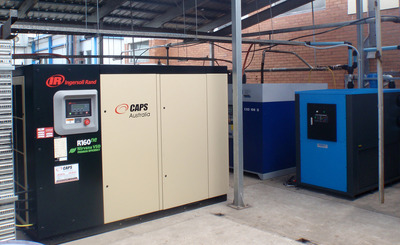

According to John Pears, Queensland Sales Engineer for CAPS, an Ingersoll Rand Nirvana R160ne-A compressor was selected to achieve this objective. The system supplies the compressed air for the meat processors, pumps and tools, in addition to the packaging lines.

The Nirvana R160ne-A compressor features a variable speed drive coupled with a controller with easily adjustable operating parameters, onboard diagnostics and a built-in energy savings calculator. The unit also utilises a coolant curtain to reduce energy consumption by injecting atomised oil into the compressed air stream, significantly lowering the energy required for compression.

The Ingersoll Rand premium efficiency packages that are supplied with Nirvana compressors allow customers to utilise the full potential of VSD compressors through the use of two-stage airends. These deliver up to 15% more air than a single-stage compressor while consuming the same amount of energy. Models in the Nirvana range are supplied with a hybrid permanent magnet (HPM) motor which provides high reliability and efficiency with unlimited starts/stops and constant pressure control. The compressor also has a ‘soft-start’ facility that allows the compressor to conserve energy by shutting down instead of running unloaded.

Dean Goode, Kilcoy Chief Executive, explained that the upgrade of its air compressor system was part of the processor's ongoing program to improve its performance and reduce plant carbon emissions. The commissioning of new compressors, along with the installation of new refrigerated dryer and additional filtration systems was the largest contributing factor in the company’s energy cost savings. “Even though the average plant compressed air usage has increased by about 14%, there has been an average power reduction of 15% due to the improved compressor technology utilised,” Goode said.

“We’re proud of our reputation and have worked hard to improve our sustainability,” Goode added. “This upgrade is part of a continuing series of improvements aimed at delivering world-class environmental operations.”

Quentin St Baker, National Manager of EES, said the Kilcoy upgrade not only substantially boosts performance, but will also help to improve equipment life span and eliminate production downtime. He estimated that the resulting air compressor energy savings would exceed 40% and maintenance costs would be reduced by approximately 30%.

Kilcoy secured funding via a federal government Low Carbon Grant arranged through Origin Energy.  “Low Carbon Australia’s finance covered the up-front costs of upgrading equipment which meant that our client could start benefiting from resulting energy efficiencies sooner,” said St Baker.

Kilcoy’s Goode said the energy savings from the compressed air upgrade would probably recoup the company’s investment within four years.
