Reliable pallet labelling for CUB

insignia Pty Ltd
Wednesday, 18 April, 2012


Carlton & United Breweries (CUB), Australia’s largest brewer, operates five breweries in Australia as well as breweries in Fiji and Samoa. Its Yatala Brewery in Queensland is one of the most state-of-the-art breweries in the world, producing 450 million litres of beer each year.

With Yatala’s advanced brewing and packaging technology, there is no room for inaccurate, incomplete or illegible pallet labels that slow output and raise production costs. Australia’s major retailers require logistics labels with unique serial shipping container codes (SSCCs) to be applied to pallets delivered to their distribution centres so they can be scanned on receipt.

To ensure the production line continued to meet industry standards for pallet labelling, CUB needed a time-saving and robust solution that could withstand a 24/7 production schedule. The solution also needed to apply labels at multiple heights while complying with trading partner requirements, including the GS1 barcoding standards for pallet labelling.

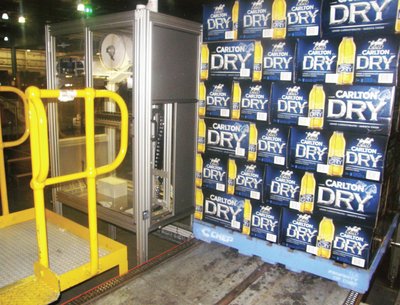

insignia pallet leballer at CUB Yatala

Working closely with CUB personal, insignia, a strategic alliance partner of GS1 Australia, developed the Domino print-and-apply label applicator system.

The applicator sits within a sealed cabinet with a pneumatic door that opens only when a label is to be applied. The cabinet is designed to keep dust out, providing the Domino M-Series printer with an optimum operating environment. This ensures the printer and the print head are not degraded by dust and other materials commonly found in warehouse and production environments. A fully functional print head is vital for printing barcodes to GS1 standards.

The pallet applicator at CUB comes with a standard check-scanner feature mounted to the tamp pad. This unit is protected via a sensor system to ensure it is not damaged during operation. The check scanner scans the barcode on the label to ensure that it is applied correctly and the barcode is readable. It then verifies that the correct label and related GTIN and SSCC are applied to the correct pallet and in the correct position.

The Domino M-Series print engine operates with a 300 dpi print head. This high-resolution print head provides more options for the maximum magnification of the barcodes within the standards for the specific label size used. The scanner monitors the performance of the print head and the quality of the print head, and the media management of the print engine ensures a quality barcode is produced even when printing a barcode in ladder format. This has allowed insignia to deploy a 4″ 300 dpi print head at CUB and print the label in ladder format.

Unique tamp-pad and tamp-arm cylinder technology within the system allows the label to be rotated 90° once on the tamp pad and applied in the correct orientation to the pallet. This means that if a pixel in the print head blows and a line is created in the print, it will not lead to an unreadable barcode as it will cut across the barcode bars leaving a legible barcode.

A key feature of the pallet-labelling system developed for CUB is its automatic height adjustment capability. CUB has a core need to meet an industry requirement of applying a GS1 logistics label to unwrapped pallets. In this case they need to apply the label to the side of one carton only on the pallet - in other words, not overlapping another carton. The Domino M-Series SSCC pallet-labelling system’s automatic height-adjustment technology means that once a label is printed onto the tamp pad, the tamp arm will then drop to the required height for the specific pallet configuration for the product on the pallet and apply the label to a single carton. As only the lightweight tamp arm is moving to meet these differing height requirements, there is less wear on the system and the arm can move quickly to apply the label in the shortest time possible. This feature can also be used to apply labels to part pallets within an operation. With this system in place the label is applied in the correct position according to GS1 standards so the pallet can be scanned on receipt at the retailers’ distribution centres.

As a proactive business, CUB saw the potential supply chain benefits of implementing this system and the flow-on effects through this quality practice throughout their supply chain. Once a quality, readable GS1 logistics label is applied in the right location to the right pallet, products can be traced through the supply chain.

To ensure consistent barcode quality, CUB Yatala has a comprehensive service contract with insignia that covers preventative maintenance and breakdowns. This means that their pallets continue to go out the door meeting GS1 standards.
