How to connect robot cells to any industrial network

Svensk Industriautomation (SVIA) is a fast-growing automation company in Jönköping, Sweden, developing robot systems for customers in the Nordic countries, Germany, UK, the Netherlands and the US. The systems they put together are robot cells which are able to communicate with other systems in a factory. The core of the robot cell is SVIA’s own vision system called Pickvision, which detects exactly how a particular object is placed on a conveyor belt and thereby enables a robot to pick up the object. In simple terms, you could say that SVIA enables robots to see. This technology has become very popular on the automation market and has enabled SVIA to double its turnover during the past few years.

“Our strength lies in the simplicity,” says Anders Mandorsson, Designer and Project Manager at SVIA. “It is very easy to tell the robot what to pick from the carrier belt, and then you are ready to go.”

By using the Pickvision software, users take a picture of the object which is to be picked from the belt. The software automatically detects the shape of the object and every time this shape shows up in the camera, the robot is able to determine how to pick it up.

As with most advanced automation systems, SVIA’s robot cells need to communicate with some kind of plant-wide industrial network and this type of communication is not always hassle-free.

“A couple of years ago, we built a robot cell for a customer who promised me access to their Profibus system; but after a while, it became clear that our system was only to be a separate node in their network. That’s when we found Anybus X-gateways from HMS. We tried installing one into our cabinet and it handled the conversion between our DeviceNet-based system and the customer’s Profibus system in a very elegant way,” says Mandorsson.

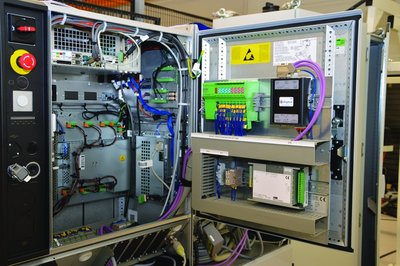

An Anybus X-gateway handles the conversion between the robot cabinet’s DeviceNet system and the end customer’s Profibus network.

Since then, SVIA has used Anybus X-gateways in many of the robot cells they deliver to customers around the world. Once again, simplicity is key.

“DeviceNet is the standard we use in most of our cabinets and instead of handling the conversion to other networks ourselves, we simply install an X-gateway from HMS. It is cheaper, but above all, it makes it easier for the customer since he gets a clear segregation between our system and his own factory network,” he said.

SVIA’s robot cells usually come with robots from ABB which operate on a DeviceNet-based network. The robots can easily communicate with another DeviceNet network, but if they are to be connected to another network, for example a Profibus or an EtherCAT network, a ‘translator’ is needed. Anybus X-gateways handle the conversion between the two networks through built-in software which restructures the data from one side and makes it understandable on the other side. The configuration is made in a matter of minutes by using the Anybus Configuration Manager software, which means that no programming is necessary.

SVIA’s robot cells are flexible and can be adjusted to cater for different customer applications such as mounting, packaging, drilling and lathing. Through Anybus X-gateways, SVIA can also be very flexible when it comes to the network they can connect to.

“To be honest, we don’t really think much about networking anymore,” says Mandorsson. “When we create a robot system, we simply order the X-gateway which converts to the customer’s industrial network - we plug it in and it works.”
