A robot that senses hidden objects

In recent years, robots have gained artificial vision, touch and even smell. “Researchers have been giving robots human-like perception,” said MIT Associate Professor Fadel Adib. “We’re trying to give robots superhuman perception.”

The researchers have developed a robot that uses radio waves, which can pass through walls, to sense occluded objects. The robot, called RF-Grasp, combines this form of sensing with more traditional computer vision to locate and grasp items that might otherwise be blocked from view. The advance could one day streamline e-commerce fulfilment in warehouses or help a machine pluck a screwdriver from a jumbled toolkit.

The research will be presented in May at the IEEE International Conference on Robotics and Automation.

As e-commerce continues to grow, warehouse work is still usually the domain of humans rather than robots, despite sometimes-dangerous working conditions. This is in part because robots struggle to locate and grasp objects in such a crowded environment.

“Perception and picking are two roadblocks in the industry today,” said Associate Professor Alberto Rodriguez. Using optical vision alone, robots can’t perceive the presence of an item packed away in a box or hidden behind another object on the shelf — visible light waves, of course, don’t pass through walls, but radio waves can.

For decades, radio frequency (RF) identification has been used to track everything from library books to pets. RF identification systems have two main components: a reader and a tag. The reader emits an RF signal, which gets modulated by the tag and reflected back to the reader. The reflected signal provides information about the location and identity of the tagged item.

The technology has gained popularity in retail supply chains — Japan aims to use RF tracking for nearly all retail purchases in a matter of years. The researchers realised this profusion of RF could be a boon for robots, giving them another mode of perception.

“RF is such a different sensing modality than vision,” Rodriguez said. “It would be a mistake not to explore what RF can do.”

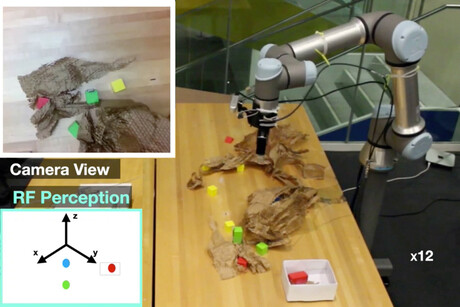

RF Grasp uses both a camera and an RF reader to find and grab tagged objects, even when they’re fully blocked from the camera’s view. It consists of a robotic arm attached to a grasping hand. The camera sits on the robot’s wrist, while the RF reader stands independent of the robot and relays tracking information to the robot’s control algorithm. The robot is constantly collecting both RF tracking data and a visual picture of its surroundings. Integrating these two data streams into the robot’s decision-making was one of the biggest challenges the researchers faced.

“The robot has to decide, at each point in time, which of these streams is more important to think about,” said the paper’s lead author, Tara Boroushaki. “It’s not just eye-hand coordination, it’s RF-eye-hand coordination. So, the problem gets very complicated.”

The robot initiates the seek-and-pluck process by pinging the target object’s RF tag for a sense of its whereabouts.

“It starts by using RF to focus the attention of vision,” Adib said. “Then you use vision to navigate fine manoeuvres.” The sequence is akin to hearing a siren from behind, then turning to look and get a clearer picture of the siren’s source.

With its two complementary senses, RF Grasp zeroes in on the target object. As it gets closer and even starts manipulating the item, vision, which provides much finer detail than RF, dominates the robot’s decision-making.

RF Grasp proved its efficiency in a battery of tests. Compared to a similar robot equipped with only a camera, RF Grasp was able to pinpoint and grab its target object with about half as much total movement. Plus, RF Grasp displayed the unique ability to ‘declutter’ its environment — removing packing materials and other obstacles in its way in order to access the target. Rodriguez said this demonstrates RF Grasp’s “unfair advantage” over robots without penetrative RF sensing. “It has this guidance that other systems simply don’t have.”

RF Grasp could one day perform fulfilment in packed e-commerce warehouses. Its RF sensing could even instantly verify an item’s identity without the need to manipulate the item, expose its barcode, then scan it. “RF has the potential to improve some of those limitations in industry, especially in perception and localisation,” Rodriguez said.

Adib also envisions potential home applications for the robot, like locating the right Allen wrench to assemble your Ikea chair. “Or you could imagine the robot finding lost items. It’s like a super-Roomba that goes and retrieves my keys, wherever the heck I put them.”
