A robot that finds hidden items

Researchers at MIT have created a robotic system that can find lost objects that are hidden from view using a combination of vision technology and RFID.

In a more close-to-home example, a busy commuter is ready to walk out the door, only to realise they’ve misplaced their keys and must search through piles of stuff to find them. Rapidly sifting through clutter, they wish they could figure out which pile was hiding the keys.

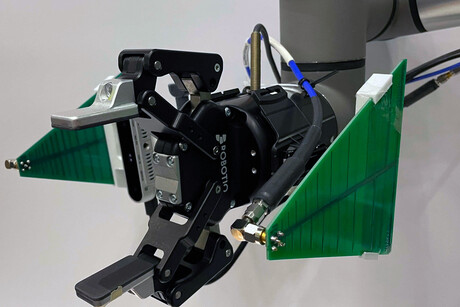

The researchers have created a robotic system that can do just that. The system, RFusion, is a robotic arm with a camera and radio frequency (RF) antenna attached to its gripper. It fuses signals from the antenna with visual input from the camera to locate and retrieve an item, even if the item is buried under a pile and completely out of view.

The RFusion prototype the researchers developed relies on RFID tags, which are cheap, battery-less tags that can be stuck to an item and reflect signals sent by an antenna. Because RF signals can travel through most surfaces (like the mound of dirty laundry that may be obscuring the keys), RFusion is able to locate a tagged item within a pile.

Using machine learning, the robotic arm automatically zeroes in on the object’s exact location, moves the items on top of it, grasps the object and verifies that it picked up the right thing. The camera, antenna, robotic arm and AI are fully integrated, so RFusion can work in any environment without requiring a special set-up.

While finding lost keys is helpful, RFusion could have many broader applications in the future, like sorting through piles to fulfil orders in a warehouse, identifying and installing components in an automotive manufacturing plant or helping an elderly individual perform daily tasks in the home, though the current prototype isn’t quite fast enough yet for these uses.

“This idea of being able to find items in a chaotic world is an open problem that we’ve been working on for a few years,” said Fadel Adib, associate professor in the Department of Electrical Engineering and Computer Science and director of the Signal Kinetics group in the MIT Media Lab. “Having robots that are able to search for things under a pile is a growing need in industry today. Right now, you can think of this as a Roomba on steroids, but in the near term, this could have a lot of applications in manufacturing and warehouse environments.”

Sending signals

RFusion begins searching for an object using its antenna, which bounces signals off the RFID tag to identify a spherical area in which the tag is located. It combines that sphere with the camera input, which narrows down the object’s location. For instance, the item can’t be located in an area that is empty.

But once the robot has a general idea of where the item is, it would need to swing its arm widely around the room taking additional measurements to come up with the exact location, which is slow and inefficient.

The researchers used reinforcement learning to train a neural network that can optimise the robot’s trajectory to the object. In reinforcement learning, the algorithm is trained through trial and error with a reward system.

“This is also how our brain learns. We get rewarded from our teachers, from our parents, from a computer game, etc. The same thing happens in reinforcement learning. We let the agent make mistakes or do something right and then we punish or reward the network. This is how the network learns something that is really hard for it to model,” said research assistant Tara Boroushaki.

In the case of RFusion, the optimisation algorithm was rewarded when it limited the number of moves it had to make to localise the item and the distance it had to travel to pick it up.

Once the system identifies the exact spot, the neural network uses combined RF and visual information to predict how the robotic arm should grasp the object, including the angle of the hand and the width of the gripper, and whether it must remove other items first. It also scans the item’s tag one last time to make sure it picked up the right object.

Cutting through clutter

The researchers tested RFusion in several different environments. They buried a keychain in a box full of clutter and hid a remote control under a pile of items on a couch.

But if they fed all the camera data and RF measurements to the reinforcement learning algorithm, it would have overwhelmed the system. So, drawing on the method a GPS uses to consolidate data from satellites, they summarised the RF measurements and limited the visual data to the area right in front of the robot. Their approach worked well — RFusion had a 96% success rate when retrieving objects that were fully hidden under a pile.

“Sometimes, if you only rely on RF measurements, there is going to be an outlier, and if you rely only on vision, there is sometimes going to be a mistake from the camera. But if you combine them, they are going to correct each other. That is what made the system so robust,” Boroushaki said.

In the future, the researchers hope to increase the speed of the system so it can move smoothly, rather than stopping periodically to take measurements. This would enable RFusion to be deployed in a fast-paced manufacturing or warehouse setting.

“Every year, billions of RFID tags are used to identify objects in today’s complex supply chains, including clothing and lots of other consumer goods. The RFusion approach points the way to autonomous robots that can dig through a pile of mixed items and sort them out using the data stored in the RFID tags, much more efficiently than having to inspect each item individually, especially when the items look similar to a computer vision system,” said Matthew S Reynolds, CoMotion Presidential Innovation Fellow and associate professor of electrical and computer engineering at the University of Washington, who was not involved in the research. “The RFusion approach is a great step forward for robotics operating in complex supply chains where identifying and ‘picking’ the right item quickly and accurately is the key to getting orders fulfilled on time and keeping demanding customers happy.”

Top image courtesy of the researchers.
